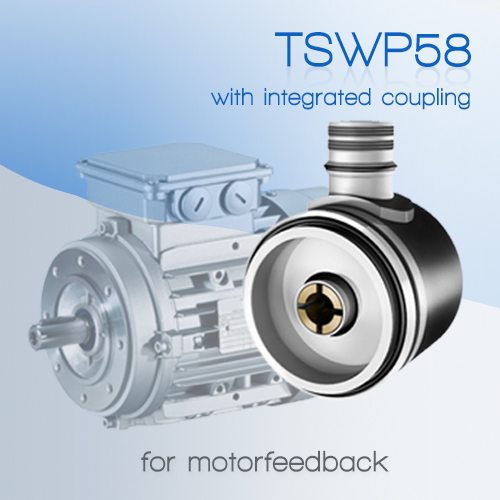

TSWP58 – particularly compact incremental optical encoder with locking collet and integrated coupling for mounting clearance compensation.
Typical application is a motor control systems where the assembly of transducer must be particularly compact, the mounting system allows fixing of transducer on a shaft measurement acting on a simple screw. Available fixing diameters are from 10 mm and 12 mm , other diameters are available on request.

Fixing of the body on equipment is executed by three brackets supplied with the encoder.
Protection degree IP65 is secured by the front seal made through special O-RING, that helps to prevent contamination of the encoder from dusts and liquids.
The operating temperature range is between -25 ° C and +85 ° C, on request it is possible to evaluate solutions of working on a more extended range .
The output signals are square wave (with 50 % duty cycle) in quadrature between them (phase shift between the output channels is 90 °), available output interfaces allow to use the transducer with all the cards acquisition of commercial inputs with NPN , PNP, Push-Pull or Line Driver (complemented signals) or Line – universal Driver (complemented with electrical signals span between 5V and 30V) .
The possibility of power supply, electronic interfaces and the versatility of the mechanical assembly allow of using this encoder with all systems currently applied in the industrial field.

• High precision
• Easy mounting
• Protection class IP 65
• Particularly suitable for motor feedback systems

Download datasheet Incremental encoder TSWP58
