WHY ISOLAR?

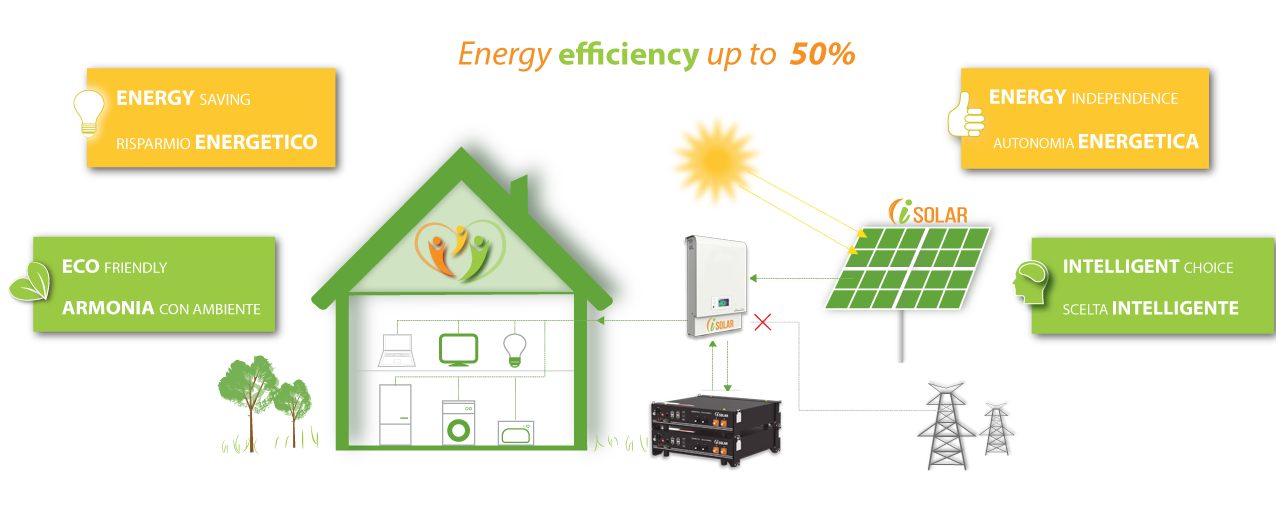

High efficient solar trackers

  • Excellent overall efficiency up to 50 % compared to fixed array
  • Energy bill saving and less dependence from the national electric network
  • SunPower solar panels offers the best combined power and product warranty over 25 years
  • Longer life-time of PV-panels due to ventilation on both surfaces of PV array
  • Protection from frequency-voltage instability and Black-out from public energy network (UPS Certification)
  • Robust construction developed for high stresses. Drive unit designed for heavy loads with compact structure
  • Complete stability in bad weather thanks to wind and snow sensors. The system calculated at wind speeds of up to 135 km/h
  • Remote control through App (Android, IOS and Win-Phone)
  • Easy D.I.Y installation and low maintenance costs

Isolar biaxial solar tracker 1400 W

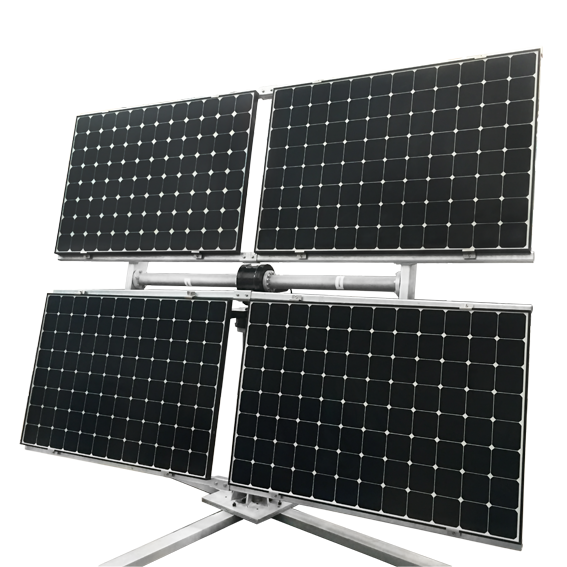

Bi-axial solar tracker 1400 W

ISOLAR biaxial solar tracker of 6 sq. meters equipped with high efficient photovoltaic monocrystalline panels with overall power of 1.4 kWp. ISOLAR moves the solar modules on dual axis, following the movement of the sun during the day, that allows to increment energy up to 50 % compared to a fixed structure of equal power. Isolar has an UPS module with integrated bypass, MPPT system and battery charger totally embedded and automatic with the possibility of management by local/remote (PC, tablet, smartphone). Storage system based on Lead Acid batteries bank of high efficiency allows to storage energy surplus and use it when the plant isn’t operative, drastically reducing dependence from energy distibutors. The tracker is ground installed, the overall dimensions are equal to 3,5m*3,5m.
  • Mechanical structure supplied with control electronics, positioning and wind sensors (anemometer);
  • Photovoltaic monocrystalline modules SunPower - 4 pcs;
  • Hybrid Inverter 4000 VA with MPPT integrated + DC unit;
  • Battery bank - 225 Ah/48 VDC/ DOD 50% - 8 pcs;
  • Web monitoring unit

Mechanical structure

Ralla_struttura
Positioning sensor

sensor_pos
Snow sensor

Wind sensor

Modules SunPower

Inverter

inverter
Battery bank

batterie
Monitoring

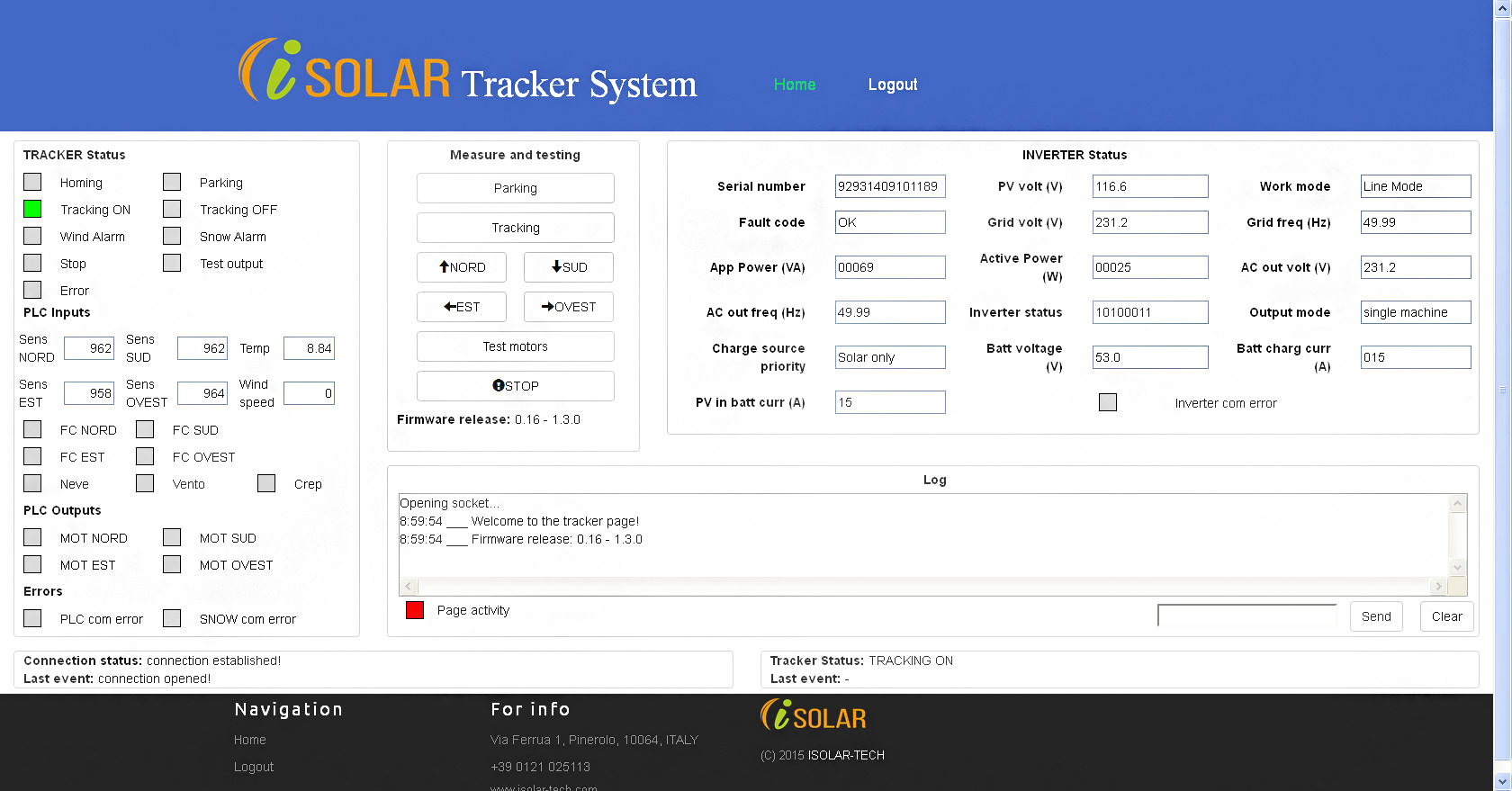

Web monitoring unit

web_unit

Isolar biaxial solar tracker 2000 W

small_tracker

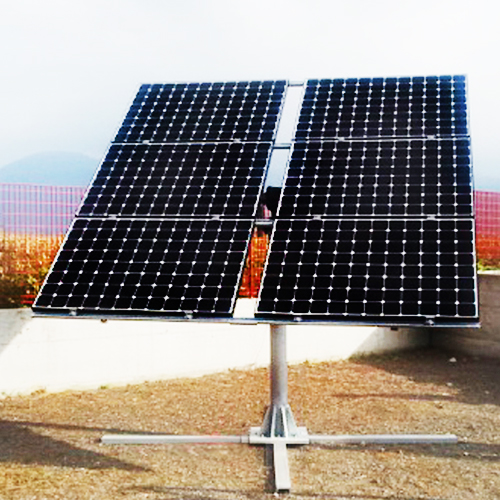

Bi-axial solar tracker 2000 W

ISOLAR biaxial solar tracker of 10 sq. meters equipped with high efficient photovoltaic monocrystalline panels with overall power of 2.0 kWp. ISOLAR moves the solar modules on dual axis, following the movement of the sun during the day, that allows to increment energy up to 50 % compared to a fixed structure of equal power. Isolar has an UPS module with integrated bypass, MPPT system and battery charger totally embedded and automatic with the possibility of management by local/remote (PC, tablet, smartphone). Storage system based on Lead Acid batteries bank of high efficiency allows to storage energy surplus and use it when the plant isn’t operative, drastically reducing dependence from energy distibutors. The tracker is ground installed, the overall dimensions are equal to 3,5m*3,5m.
  • Mechanical structure supplied with control electronics, positioning and wind sensors (anemometer);
  • Photovoltaic monocrystalline modules SunPower - 6 pcs;
  • Hybrid Inverter - 4000 VA with MPPT integrated + DC unit;
  • Battery bank - 225 Ah/48 VDC/ DOD 50% - 8 pcs;
  • Web monitoring unit

Mechanical structure

Ralla_struttura
Positioning sensor

sensor_pos
Snow sensor

Wind sensor

Modules SunPower

Inverter

inverter
Battery bank

batterie
Monitoring


Web monitoring unit

web_unit
