Accessorio

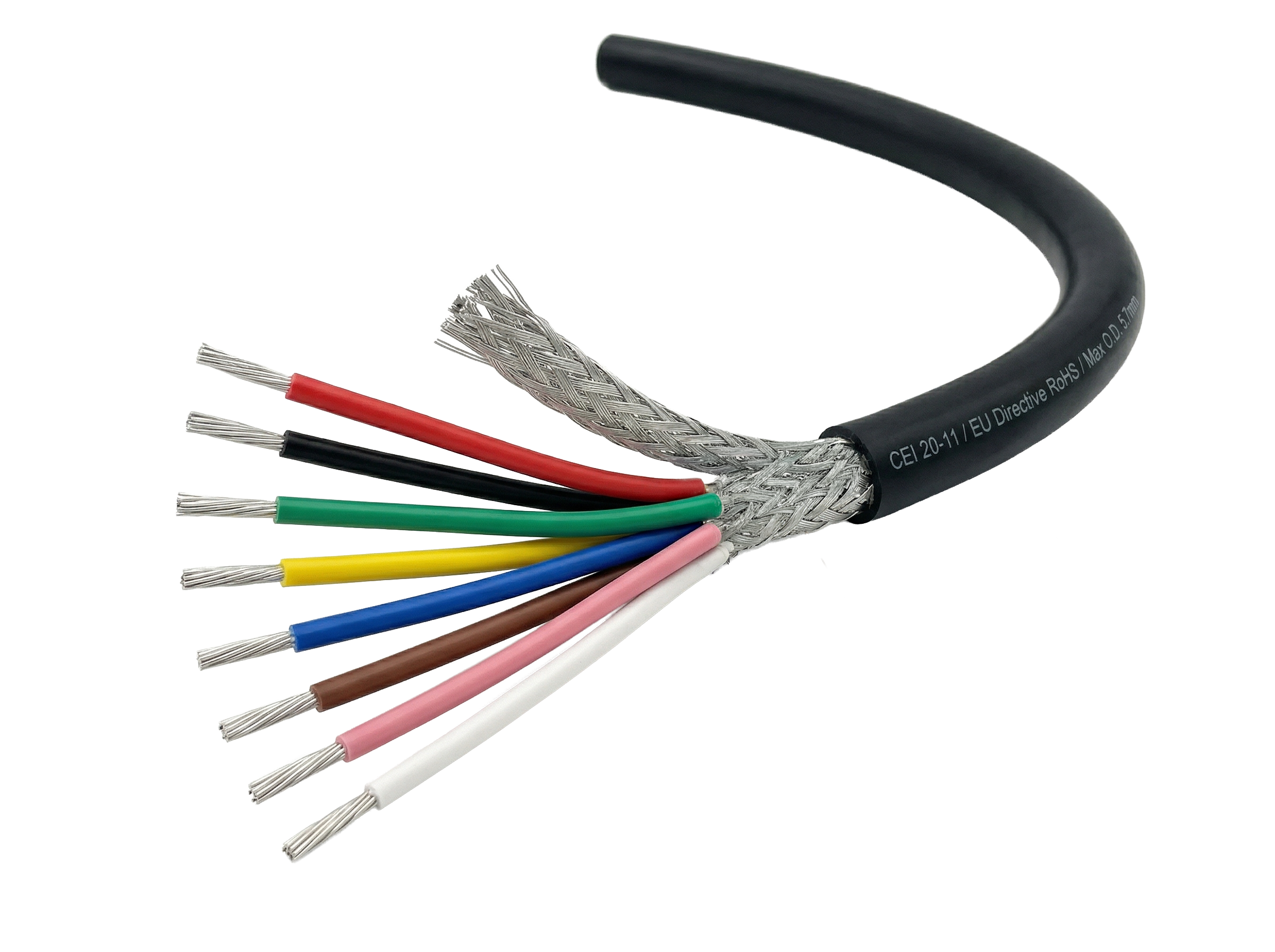

Cavo 1E1C608A

Oil-resistant, flame-retardant, shielded (>80%) pre-wired cable in special PVC. External diameter: 5.7 mm max. Color: Black. Standard: CEI 20-11, EU Directive RoHS. N° 8 AWG2 conductors: red, black, green, yellow, blue, brown, pink, white. Bending radius: 10 times the external diameter. Temperature: -15°C / +80°C.

CERoHSCEI 20-11

Technical Specifications

ParameterValue
Protection Rating-
Housing MaterialPVC speciale resistente olio
Operating Temperature-15°C / +80°C

Download Center

CE Declaration
